Description

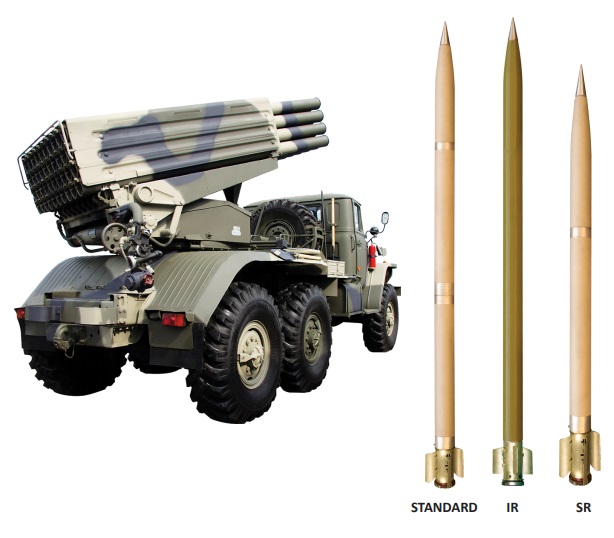

The 122mm-GRAD, standard range rocket has a range of 21 km and is equipped with high explosive fragmentation warhead having high destructive power. It is used to defend or attack against targets such as infantries positioned in open terrain or in trenches and shelters, as well as light armored vehicles, mortar and artillery sites, commanding posts, garrisons, single and collective trenches, and similar targets. The 122mm-SR (short range) is designed to attack against the same targets and it can also be used on high speed boats as a sea rocket. The 122mm-LR (long range) rocket is equipped with the same warhead as the standard type, but has a maximum range of 40km and is used to create huge fire over the above-mentioned targets. This type is also capable of destroying fortifications and similar targets
TECHNICAL SPECIFICATIONS
| Model | Standard | LR | SR |
| Fuze type | Mechanical impact | ||
| Warhead Caliber (mm) | 122 | 122 | 122 |
| Weight (kg) | 65 | 66 | 42 |
| Length (mm) | 2850 | 2892 | 1885 |
| Max. Effective Range at Sea Level (km) | 21 | 40 | 12 |
| Lethal Radius (m) | 20 | 20 | 20 |
